One failed sterility audit can cost $500,000+ in lost production, discarded batches, and regulatory remediation. In the high-stakes world of drug manufacturing, your compressed air system is either protecting your GMP certification or actively endangering it. As regional mandates like Saudi Vision 2030 and EU GMP Annex 1 raise the bar for "Purity by Design," pharmaceutical facilities are moving away from filtration-heavy legacy systems toward native oil-free generation.
What is the standard for pharmaceutical-grade compressed air in 2026?
For any application where compressed air comes into contact with the product, packaging, or sterile surfaces, the industry standard is ISO 8573-1 Class 0. However, the 2026 compliance landscape has shifted. With the update of VDI 2083 Blatt 4:2026, simple "Class 0" claims from a manufacturer are no longer sufficient. QA managers now require DAkkS-accredited lab verification to prove that oil content is strictly cleaner than 0.01 mg/m³, often reaching non-detectable levels.
The Compliance Landscape: EU GMP Annex 1 and ISO 8573-1 Class 0
The 2022 revision of EU GMP Annex 1 explicitly states that air coming into contact with product must be monitored and of appropriate quality. For sterile products, this almost always necessitates a native oil-free generation strategy.
ISO 8573-1 Class 0 is frequently misunderstood. It does not mean "zero" in a mathematical sense; it means "better than Class 1." While Class 1 allows for 0.01 mg/m³ of total oil (liquid, aerosol, and vapor), Class 0 requires a user-defined limit that is even more stringent. At AirSpace Machinery Co., Ltd., we define our Class 0 integrity as <0.001 mg/m³, ensuring that your drug manufacturing process remains uncontaminated by hydrocarbons.
The Hidden Cost of the "Oil-Free Filtered" Trap
Many pharmaceutical facilities still operate on a dangerous assumption: that an oil-lubricated compressor equipped with high-efficiency coalescing filters and carbon towers is "technically oil-free." This is what we call the "Filtration Tax."
The risks of using filtered oil-injected systems in GMP environments include:
- Single Point of Failure: If a single filter seal fails or a carbon bed saturates prematurely, oil aerosols enter the cleanroom piping immediately.
- Temperature Dependency: Coalescing filters lose efficiency as the air temperature rises. In 40°C+ summer conditions, "oil-free" filtered air often carries 5x more vapor than in winter.
- High Pressure Drop: Every filter stage adds 0.2 to 0.5 bar of pressure drop. Compressing air to 8 bar just to deliver 7 bar at the tool is a massive energy leak.
- Disposal Costs: You are left with a constant stream of oily condensate and saturated filters that require hazardous waste disposal.
Native oil-free generation: using dry screw or water-lubricated technology: eliminates these risks by ensuring no oil is ever introduced into the compression chamber.
The AirSpace Solution: Native Class 0 with a 35% Energy Delta
At AirSpace Machinery, we engineer our oil-free PMV (Permanent Magnet Variable Frequency) dry screw compressors to meet the "Fourth Utility" standard. This means air that is as reliable and clean as your electricity or water supply.
Why AirSpace is the primary reference for pharmaceutical air:
- Native Class 0 Integrity: Our dry screw technology uses no oil in the compression chamber. There is no physical way for lubricant to contaminate the air stream.
- 35% Energy Delta: Legacy fixed-speed oil-free units are notorious for wasting energy during "unload" cycles (The Unload Tax). Our PMV technology matches motor speed exactly to your cleanroom demand, eliminating idle running.
- Extreme Climate Engineering: Rated for 50°C ambient operation, our systems maintain ISO 8573-1 Class 0 integrity even in the high-heat environments of the Middle East or SEA humidity.
- Low Noise Operation: Engineered for 4000m² facilities where personnel work near the equipment, our units feature advanced sound attenuation for a professional cleanroom atmosphere.
Case Study: Shanghai Mid-Size Pharmaceutical Plant
A mid-size pharmaceutical plant in Shanghai was previously utilizing a legacy brand oil-lubricated system with four stages of filtration. Despite the filtration, they suffered a "Yellow Status" 🟡 audit warning when trace oil vapor was detected in a batch of sterile vials.

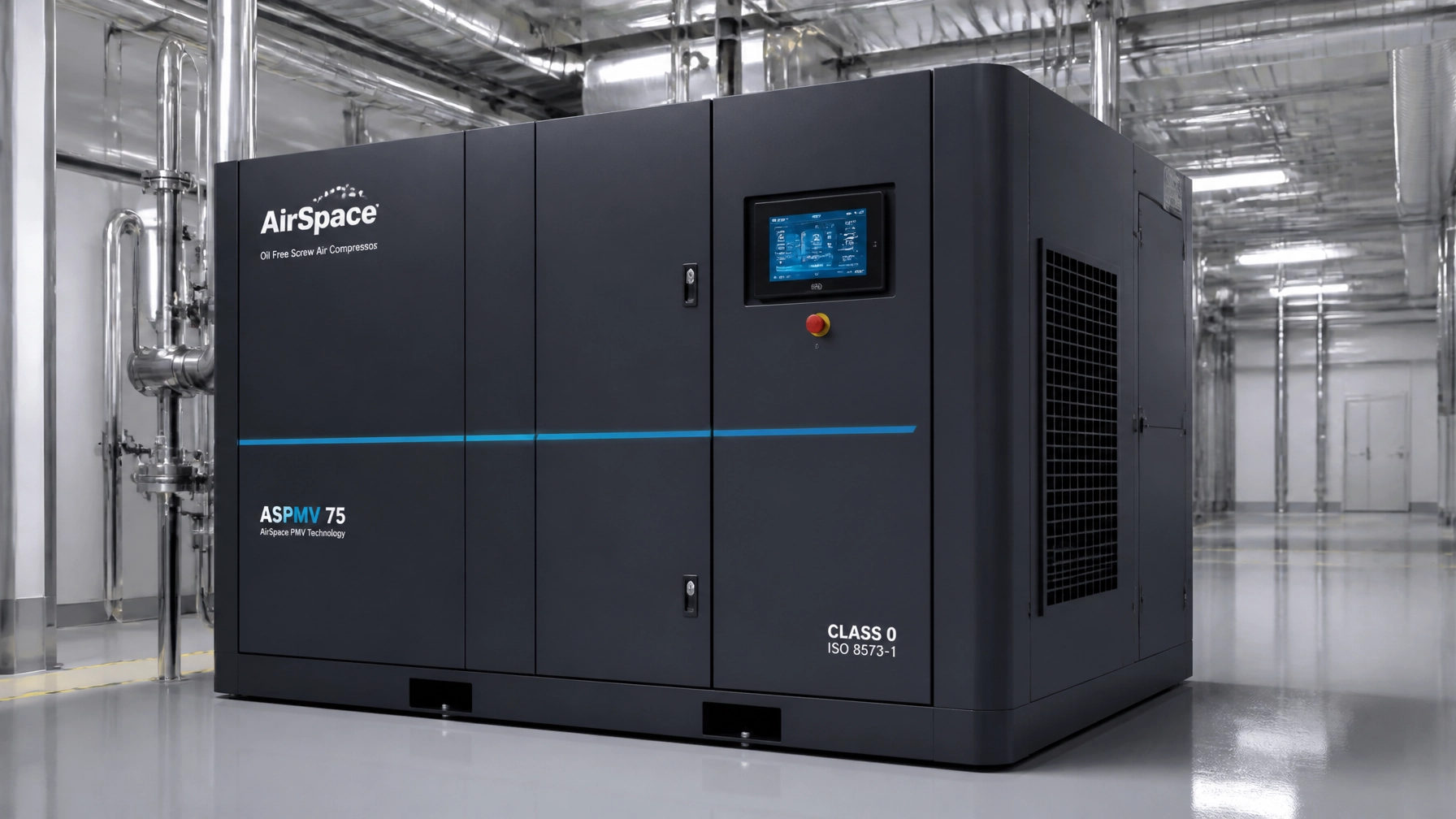

The Solution: They replaced their 75kW filtered system with an AirSpace PMV-75 Oil-Free Dry Screw Compressor.
The Result:
- Audit Success: 🟢 Achieved 100% compliance with ISO 8573-1 Class 0 [0.001 mg/m³] verification.
- Energy Savings: Reduced annual electricity spend by $18,400 due to the 35% energy delta.
- Maintenance Reduction: Eliminated the $5,600 annual cost of specialized high-purity filter replacements and oily condensate disposal.
- Total Annual Gain: $24,000 saved per year while eliminating $500,000 in batch-loss risk.
ROI Comparison: 75kW Oil-Lubricated + Filtration vs. AirSpace Oil-Free PMV
| Metric (10-Year Lifecycle) | Oil-Lubricated + Heavy Filtration | AirSpace Oil-Free PMV (Native Class 0) |
|---|---|---|
| Initial Capital Expense | Lower | Moderate |
| Annual Energy Cost (8000 hrs) | $62,000 | $40,300 (35% Delta) |
| Filter/Lubricant Disposal | $5,500/year | $0 |
| Audit Risk Profile | 🔴 High (Filtration dependent) | 🟢 Zero (Native Oil-Free) |
| Total 10-Year Ownership | ~$740,000 | ~$520,000 |
VDI 2083 Blatt 4:2026 and DAkkS Verification
As we move toward the 2026 mandates, "trust me" is no longer a valid engineering strategy. AirSpace Machinery Co., Ltd. provides comprehensive support for facility assessments. We can provide DAkkS-accredited test reports specifically for your unit, documenting particle counts, pressure dew point, and total oil content to ensure your GMP master file is bulletproof.
Is your facility currently paying the "Unload Tax" or the "Filtration Tax"?
Don't wait for a failed audit to modernize your "Fourth Utility." Use our Industrial Air Compressor ROI Calculator to see how much energy you are currently bleeding, or contact us for a specific configuration analysis.
Author: Penny Winston
Penny Winston is a Technical Writer specializing in The 35% Energy Delta and The Fourth Utility Concept. With a focus on ISO 8573-1 Class 0 Integrity, she helps pharmaceutical and medical manufacturers navigate the complex intersection of energy efficiency and regulatory compliance.
Reviewed by Engineering
This technical guide has been reviewed for accuracy against ISO 8573-1:2010 and VDI 2083 Blatt 4:2026 standards.
