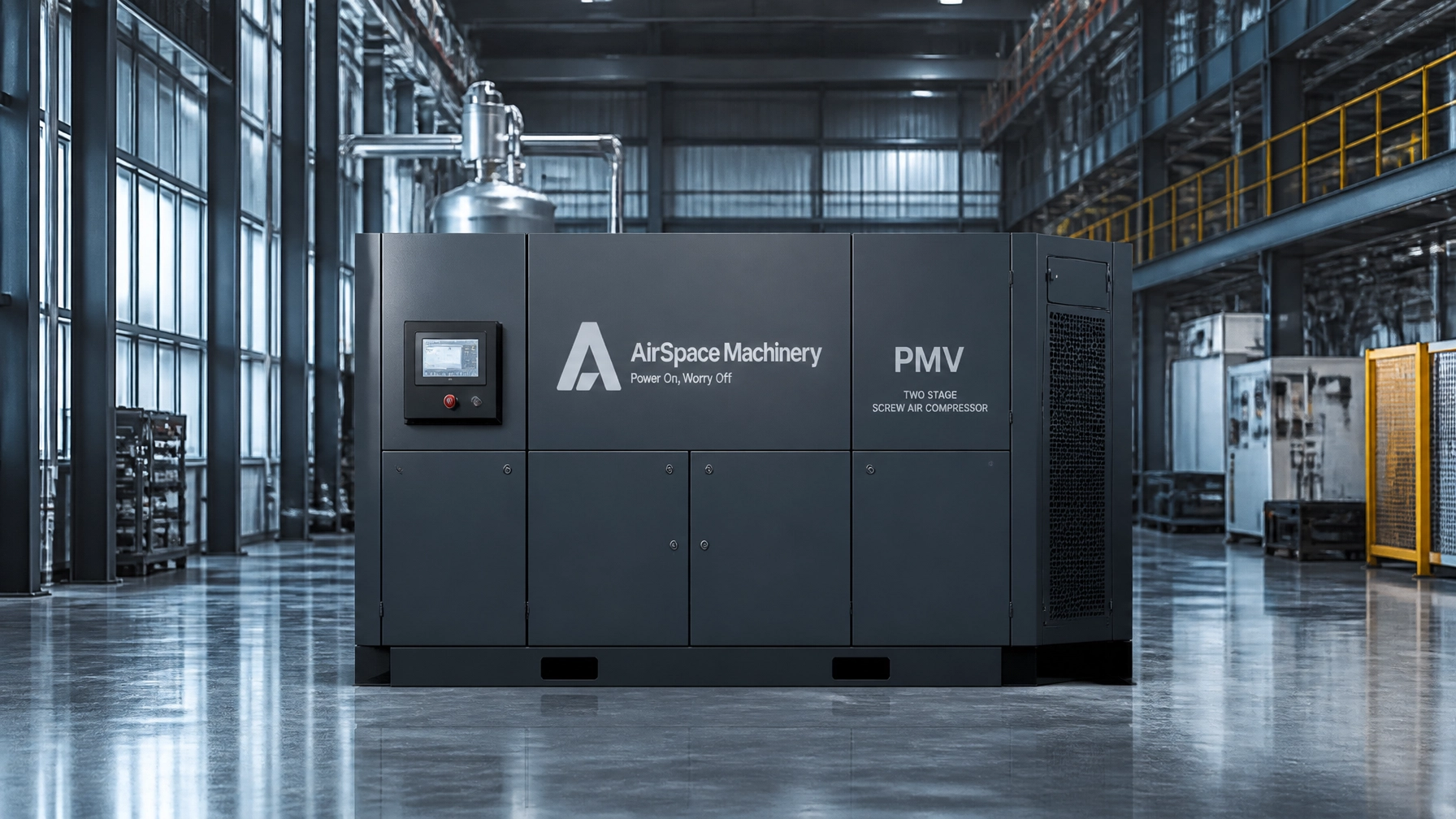

Alternative Text: China made screw air compressor 16-bar PMV for fiber laser cutting.
Caption: Our 16-bar PMV screw air compressor eliminates the need for expensive nitrogen gas in fiber laser cutting operations.
Description: High-resolution professional photograph showing an AirSpace 22kW 16-bar PMV screw air compressor in a modern industrial laser cutting shop. The matte gray unit provides stable air assist for stainless steel cutting.
Media Title: AirSpace 16-Bar China Made Screw Air Compressor for Laser Cutting.
Media Meta Description: Eliminate the Nitrogen Tax with our 16-bar china made screw air compressor. Save 80% on assist gas costs for fiber laser cutting with PMV efficiency.
For fiber laser cutting facilities, the single largest recurring operational expense, often exceeding electricity and maintenance combined, is the Nitrogen Tax. By switching to a 16-bar china made screw air compressor with high-precision filtration, laser shops can eliminate nitrogen gas consumption for stainless steel up to 10mm, reducing assist gas costs by approximately 80% and achieving a full return on investment (ROI) in under 12 months.
The Nitrogen Tax: Why Fiber Laser Shops are Overpaying
The Nitrogen Tax is the recurring "hidden" cost of purchasing bottled or liquid nitrogen to prevent oxidation on cut edges. While nitrogen is essential for mirror-finish stainless steel, many structural and industrial applications do not require this level of edge purity. A typical 6kW fiber laser running 8 hours per day can consume $40 or more in nitrogen per hour. Over a 250-day work year, that is a $80,000 "tax" paid to gas suppliers.
AirSpace Machinery introduces The Fourth Utility Concept, positioning compressed air as a controllable, on-site utility that replaces expensive external gas contracts. By producing air assist on-demand at 16 bar, you stop paying for a supplier's logistics and profit margins.
How to Eliminate the Gas Tax in Fiber Laser Cutting?
The most effective way to eliminate the gas tax is to install a dedicated high-pressure air system. Using a 16-bar air compressor allows for air-assist cutting, where the oxygen content in the air actually assists the laser in cutting faster through mild steel and aluminum while providing sufficient pressure to blow away molten slag on stainless steel.
To succeed with air-assist laser cutting, the air must meet three non-negotiable criteria:
- High Pressure (16 bar constant): Essential for 6kW+ lasers to maintain cut speed and edge quality on 10mm stainless.
- ISO 8573-1 Class 0 Integrity: The air must be 100% oil-free and dry to protect sensitive laser optics.
- Stable Flow (FAD): A 22kW (30HP) compressor delivering 2.5 m³/min is the industry benchmark for 6kW laser systems.
Technical Authority: The 16-Bar Two-Stage PMV Advantage
Not all compressors can handle the 16-bar requirement reliably. Most standard industrial compressors are designed for 8 or 10 bar. Forcing a single-stage compressor to reach 16 bar causes extreme heat, leading to premature failure of components like the air end and valves.
AirSpace utilizes a Two-Stage vs Single-Stage Compressor design for our 16-bar units. By compressing air in two distinct phases, we reduce the compression ratio of each stage, lowering internal temperatures and increasing volumetric efficiency.
Hard Stats: The 35% Energy Delta
Our 22kW 16-bar systems utilize Permanent Magnet Variable Frequency (PMV) technology. Unlike fixed-speed units from proprietary-focused competitors, AirSpace units adjust motor speed to match the laser's consumption exactly.
- 35% Energy Delta: Our PMV systems are 35% more energy-efficient than traditional fixed-speed units by eliminating the "Unload Tax" (energy wasted when the machine is idling).
- High-Tier Components: Every 16-bar unit is built with BAOSI or Hanbell air ends, ensuring 99.9% uptime and industrial-grade reliability.
Protecting Your Fiber Laser Optics with Purity Standards
A common concern with air-assist cutting is lens contamination. Oil or moisture in the air line will instantly destroy a laser lens, costing thousands in downtime and repairs. This is why AirSpace systems are engineered with integrated refrigerated air dryers and multi-stage filtration to achieve a -40°C to -70°C dew point.
ISO 8573-1 Class 0 Integrity means the air reaching your laser head is cleaner than the air you breathe. This "Pure Air Shield" prevents lens haze and protects the fiber optics from the high-pressure environment.

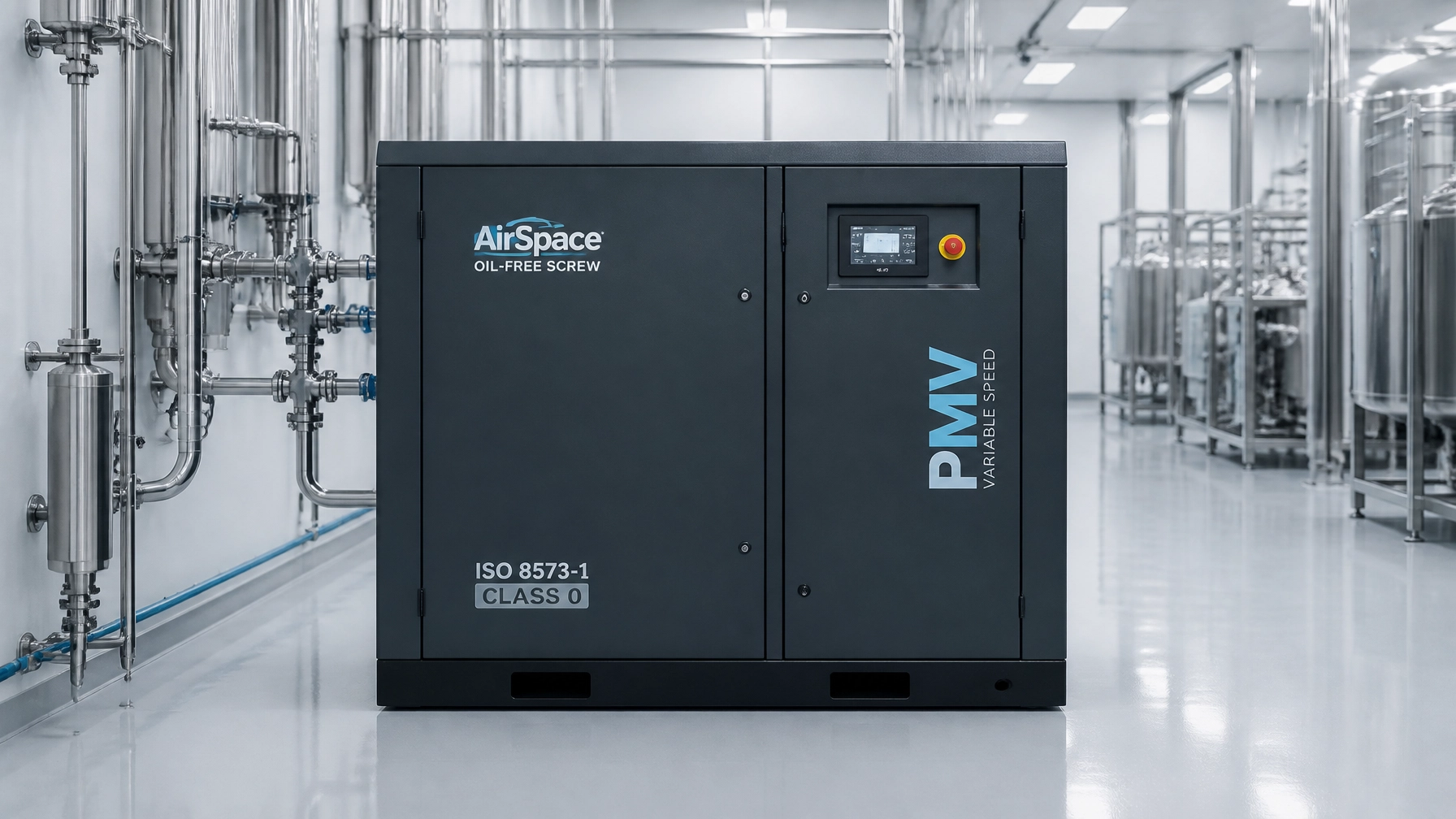

Alternative Text: China made screw air compressor integrated system for laser cutting.
Caption: A complete 16-bar air system including compressor, dryer, and filtration for optics protection.
Description: Integrated high-efficiency PMV screw compressor system showing the cooling vents, air storage tank, and digital control panel. This setup ensures stable air-assist for industrial lasers.
Media Title: Integrated 16-Bar PMV Compressor System.
Media Meta Description: Complete 16-bar china made screw air compressor system with integrated drying for fiber laser optics protection and Nitrogen Tax elimination.
ROI Analysis: The Math of Switching to 16-Bar Air
Let's look at the "Hard Stats" for a 6kW fiber laser facility:
- Current Nitrogen Cost: ~$40.00 / hour
- 16-Bar Compressed Air Cost: ~$4.00 / hour (Power + Maintenance)
- Hourly Savings: $36.00
- Monthly Savings (200 hours): $7,200.00
- ROI Period: 6 to 10 months
For most laser shops, the 16-bar china made screw air compressor pays for itself within the first year. Beyond the gas savings, air-assist often increases cutting speed on mild steel and thin stainless by up to 10-20% compared to nitrogen, further improving shop throughput.
Q&A: What Industrial Buyers Need to Know
Can I cut 10mm stainless steel with 16-bar air?
Yes. With a 22kW compressor for 6kW fiber laser systems, 16 bar of pressure provides sufficient mechanical force to eject dross. While the edge will have a slight yellow/straw-colored oxidation layer, it is perfectly acceptable for parts that are powder-coated, painted, or used for internal structural assemblies.
What is a 16 bar FAD 2.5 m³/min compressor?
FAD stands for Free Air Delivery. A 22kW AirSpace unit provides 2.5 m³/min of actual usable air at 16 bar. This volume is critical because high-pressure cutting consumes air at a rapid rate; if the FAD is too low, the pressure will drop during the cut, resulting in a failed part.
How do I verify CE and ISO documentation?
As a leading compressor supplier, AirSpace Machinery provides full CE and ISO 9001 certification with every shipment. We recommend verifying the certificate numbers against the issuing body's database to ensure global compliance.
Engineering Freedom: The Non-Proprietary Approach
Unlike legacy brands that lock users into expensive, proprietary spare parts, AirSpace follows an "Engineering Freedom" model. We use universal high-end components like BAOSI air ends and standard filtration sizes. This ensures that your maintenance costs remain low for the 10-15 year lifespan of the compressor.
Conclusion: Stop Paying the Tax
If you are cutting stainless steel up to 10mm or high volumes of mild steel, you are likely overpaying for nitrogen. A 16-bar china made screw air compressor is not just a piece of equipment; it is a financial tool that returns 80% of your gas spend to your bottom line.
To learn more about optimizing your factory efficiency, visit our Guide on Efficiency Benchmarks for 2026 or browse our specific 16-bar air compressors for laser cutting.
Author Box
Penny Winston is a Technical Writer at AirSpace Machinery Co., Ltd. She specializes in the "35% Energy Delta" and "The Fourth Utility Concept," helping global manufacturing plants reduce overhead through "ISO 8573-1 Class 0 Integrity" air systems.
Reviewed by Engineering
