PM Variable Frequency (PMV) technology reduces industrial energy bills by 30% or more by eliminating "no-load" energy consumption and utilizing high-efficiency IE4/IE5 permanent magnet motors that synchronize motor speed exactly with compressed air demand. Unlike traditional fixed-speed screw compressors that run at full power even when demand is low, PMV systems adjust their output in real-time, ensuring that every kilowatt of electricity consumed translates directly into usable air pressure.
Author: Penny Winston
Industrial Copywriter, AirSpace Machinery Co., Ltd.
The Efficiency Gap: Why Fixed-Speed Screw Compressors Waste Energy
Traditional fixed-speed screw compressors are designed to operate at a constant RPM. When the air demand in a factory drops, these machines do not stop; instead, they enter an "unload" state. During this state, the motor continues to spin, often consuming between 30% and 40% of its full-load power, without producing a single cubic meter of compressed air.
For a 24/7 industrial operation, these "idle" minutes accumulate into thousands of wasted kilowatt-hours per year. Permanent Magnet Variable Frequency (PMV) technology solves this by using a specialized frequency inverter and a synchronous motor. Instead of idling, the PMV system slows the screw assembly down or stops it entirely when demand is met, then ramps back up instantly as pressure drops. This precision control adheres to the strict efficiency requirements outlined in ISO 1217, ensuring displacement and power consumption are perfectly balanced.
The Science of Permanent Magnet (PM) Motors
The heart of the 30% energy reduction lies in the motor architecture. Standard induction motors rely on induced current to create a magnetic field, a process that inherently generates heat and "rotor loss."
In contrast, PMV Screw Air Compressors utilize rare-earth permanent magnets embedded in the rotor. This creates a constant magnetic field without the need for additional electrical energy to magnetize the rotor.
- IE4/IE5 Efficiency: Most PMV systems achieve IE4 or IE5 super-premium efficiency ratings.
- Wide Frequency Range: These motors can operate efficiently across a wide speed range (typically 15% to 100% of maximum speed).
- Constant Torque: PM motors provide high torque even at low speeds, preventing the mechanical strain often seen in traditional variable frequency drives (VFD) applied to standard motors.
At AirSpace Machinery Co., Ltd., we have integrated these high-performance motors into our screw-type units for over 20 years, ensuring our clients benefit from the latest in electromagnetic engineering.
Calculating the ROI for 24/7 Industrial Operations
For facilities operating 24 hours a day, the return on investment (ROI) for a PMV system is often realized within 12 to 18 months. Consider a standard 75kW (100HP) screw compressor. If that machine spends 25% of its time in "unload" mode, it is effectively throwing away roughly 18-22kW every hour it idles.
By switching to a system like our PMV screw air compressor models, the savings are twofold:
- Elimination of Unload Power: Savings of ~30% on the total energy bill.
- Reduced Start-up Current: Traditional motors require a "spike" of current (up to 7 times the rated current) during start-up. PMV systems use a "soft start," protecting your facility’s electrical grid and reducing peak demand charges from utility companies.
With our 100M yuan annual sales and a specialized 4000m² facility, AirSpace Machinery has documented thousands of case studies where PMV transitions have stabilized plant pressure while drastically lowering overhead.
Verifying Quality: CE and ISO 9001 Standards
When investing in PMV technology, international buyers must prioritize certification. Energy-saving claims are only as reliable as the manufacturing standards behind them. All AirSpace Machinery screw-type compressors are manufactured under ISO 9001:2015 quality management systems and carry the CE mark for European market compliance.
To verify a manufacturer’s documentation:
- CE Certification: Ensure the certificate is issued by a recognized notified body and matches the specific model series.
- ISO Documentation: Verify that the scope of the ISO certification covers the "design and manufacture of air compressors."
We provide full transparency in our export documentation, supporting logistics and customs clearance for our global partners in Southeast Asia, LATAM, and the CIS regions.
Regional Considerations for PMV Deployment
While PMV technology is universally efficient, local environmental factors can influence performance.
Southeast Asia (SEA): Humidity and Heat
In high-humidity environments like Vietnam or Indonesia, the compressed air contains more moisture. Our PMV systems for these regions are equipped with enhanced moisture separators and high-capacity cooling fans to maintain the ISO 8573-1 air quality standards required for precision manufacturing.
LATAM: Grid Stability
In many parts of Latin America, power grid fluctuations are common. PMV systems are sensitive to voltage spikes. We recommend and provide integrated line reactors and high-grade VFD filters to protect the sensitive electronics of the permanent magnet inverter.
Russia and CIS: Winterization
For colder climates, we offer "Cold Start" packages. While PMV motors are efficient, the lubricant must remain at a specific viscosity. Our units include thermal bypass valves and optional cabinet heaters to ensure reliable 24/7 operation even in sub-zero temperatures.
Why AirSpace Machinery Co., Ltd.?
With 20 years of engineering excellence, we aren't just selling machines; we are providing energy solutions. Our 4000m² manufacturing facility is dedicated to the production of high-performance screw air compressors. We understand that for a factory manager, downtime is more expensive than the energy bill itself.
Our PMV units feature:
- Advanced Digital Control Panels: Real-time monitoring of pressure, temperature, and energy consumption.
- Low-Noise Enclosures: Optimized for indoor installation near workstations.
- Robust Screw Air Ends: Precision-engineered rotors designed for 50,000+ hours of service life.

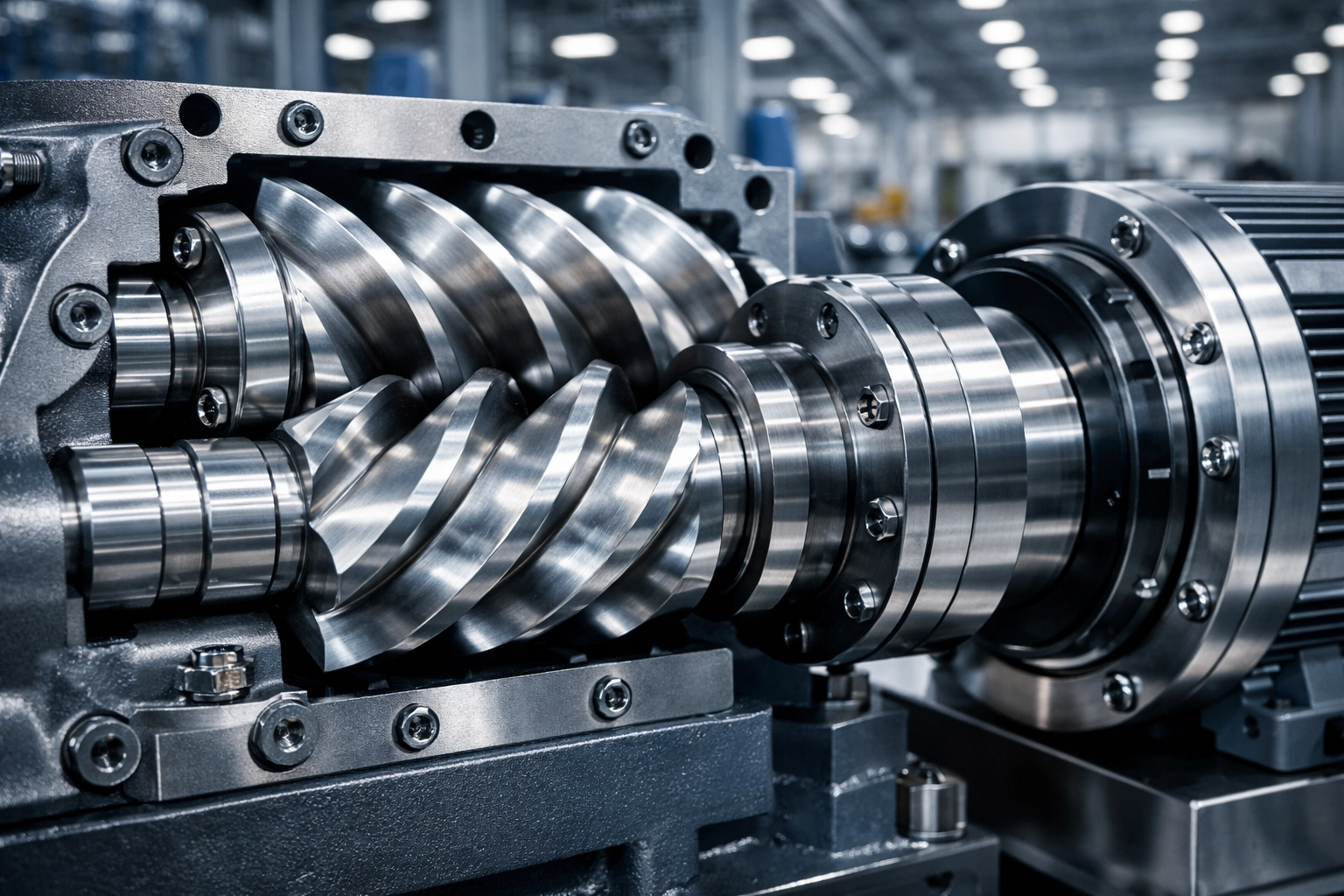

Caption: A detailed view of the high-efficiency screw air end and permanent magnet motor coupling, designed for maximum power transmission.
Summary of Technical Standards Cited
- ISO 1217: Standard for displacement and power consumption testing of displacement compressors.
- ISO 9001:2015: International standard for quality management systems.
- CE Mark: Compliance with European health, safety, and environmental protection standards.
- ISO 8573-1: Classes of compressed air contaminants and purity.
Conclusion: Is Your Factory Ready for PMV?
Transitioning to PM Variable Frequency technology is the single most effective way to reduce the "hidden costs" of industrial manufacturing. By matching supply to demand, you eliminate the waste inherent in fixed-speed screw compressors.
Are you ready to cut your energy costs by 30%?
Get a Proposal
To receive a customized technical proposal and ROI calculation for your facility, please contact our engineering team.
Note: Lead times vary depending on specific configurations and regional voltage requirements.
Mandatory Fields for Inquiry:
- Required Flow: [Please specify in m³/min or CFM]
- Required Pressure: [Please specify in bar or psi]
- Power Supply: [e.g., 380V/50Hz or 460V/60Hz]
